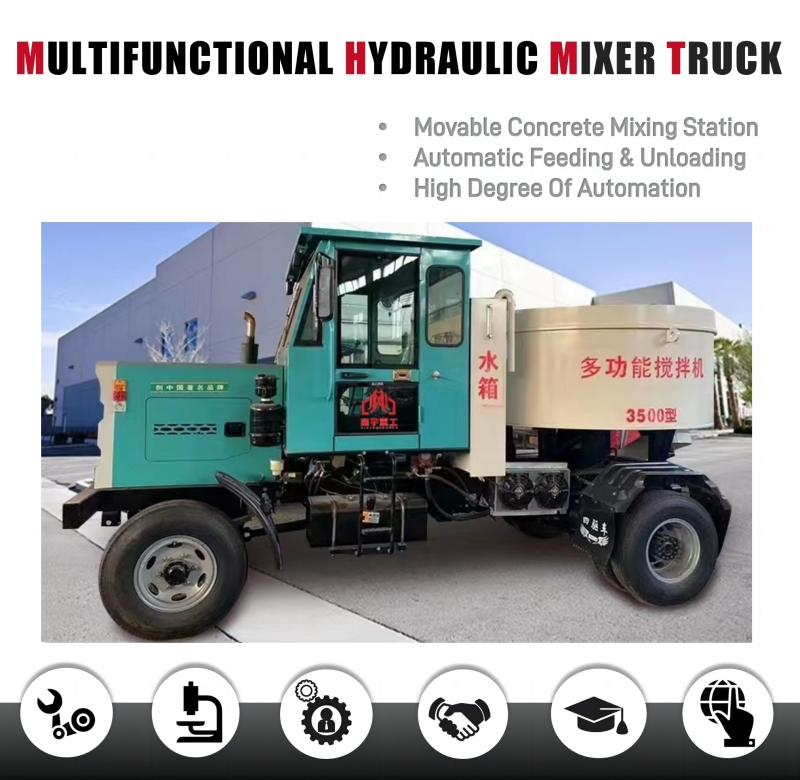

Factory direct automatic loading multi-functional model 3500 flat concrete mixer truck

Wechat consulting

微信扫码咨询
Consult now 400-123-4567 返回

Details

ine model 4105 Boosting Mixing reducer Hard tooth surface multi-stage reduction
Transmission Five Plus One Belt Synchronizer Residual discharge rate ≤ 1%
Transfer box 330 Two wheel drive and four-wheel drive switching Discharge port 180 ° adjustable rotation
Front axle Hydraulic to pneumatic brake Water addition method Automatic water supply
Rear axle Heavy duty cast steel air brake Weight  4 .35 tons
tyre Six wheeled all steel wire tires vehicle size  5150 * 2200 * 2500
water tank Rear/side mounted Mixing time ≈ 3-4 minutes
Mixing method Hydraulic stirring Frame leaf spring Internal hanging
Driver's cab Twin/Single transmission shaft Forged 140 heavy-duty
Mixing tank thickness 1.2cm wear-resistant alloy manganese plate Hydraulic components 12 months warranty
Tank diameter 2200mm Discharge groove length 1000mm
Tank height 920mm The lowest point of the discharge chute 750mm





FAQ :

1. What Certificate do you have?

TDER workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
TDER never recruit Underage labor.

2. Can you customize and design as the clients' requirement?
TDER will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the TDER
warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
